Home Products HYDRAULIC CONTAINER RAMP
CONTAINER RAMPThis
CONTAINER RAMPThis
COD not available
HYDRAULIC CONTAINER RAMP by HYDRAULIC CONTAINER RAMP

HYDRAULIC CONTAINER RAMP

Share with
Share this on :

Description

Product details

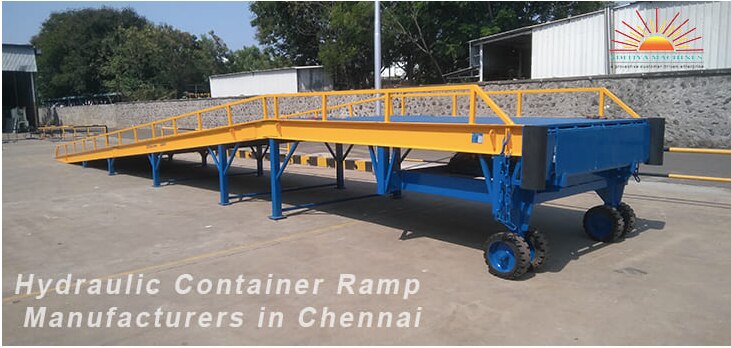

CONTAINER RAMP This equipment is useful for loading and unloading containers using the forklift from ground level directly. The height of the equipment is hydraulically adjustable by a hand hydraulic pump or AC/DC operated hydraulic power-pack. We suggest AC/DC operation for a high frequent usage. We can also give a mechanical jack system of height adjustability for low budget accommodation. SPECIFICATION • Load Capacity - 10000 Kg & 16000 Kg • Height Adjustment Range - 1200mm To 1800mm From Ground Level • Usable Width - 2000mm • Height Of Safety Rails On Two Sides - 300mm • Overall Dimensions - 2400mm (W) X 11700mm (L) ( 8 Feet X 39 Feet)

Keywords

Other Products

Related Products

HYDRAULIC GOODS LIFT The Goods lift is a materials lift for shifting materials, whether palletised or loose materials from one floor to mezzanine floor or other floors. Some customers needs to shift the materials from ground floor to more than one floor. Essentially, it is for the materials lift application and not for passengers. TYPES OF GOODS LIFT Different types of ‘goods lifts’ are available and they depend upon the lifting mechanism. It could be hydraulic drive or electric brake motor in combination with gear box and chain drive. Different manufacturers follow different designs. ADVANTAGES OF HYDRAULIC LIFTS OVER DIRECT ELECTRIC DRIVEN LIFTS: • No head room required • Deep pit at ground level NOT required • Compact and less space occupation • Lifting and lowering speeds can be infinitely varied by simple and cost effective valves SPECIFICATION OF GOODS LIFT OR MATERIALS LIFT (INPUT REQUIRED FROM THE CUSTOMER): • Load capacity in Kg • Size of CAR in width (mm) and depth (mm) • Height of Car( depends on the height of material anticipated) • Minimum height of Car ( standard 200 mm or pit so that platform surface matches with floor level) • How many floors the lift has to service • Height of different floors from ground level • How many times you anticipate the lift to up and down in a shift in a shift • Speed of lift, generally it varies from 3 m/min to 5 m/min • Location of goods lift, outdoor or inside the factory • Outer enclosure for the goods lift is required if it located outdoor • Types of electrical power input, electricity board or and Genset • Material entry and exit details, one direction, opposite sides or 90 degree WHY SHOULD YOU BUY OUR MATERIALS LIFT: • Superbly engineered and designed • Quality materials and correctly followed manufacturing methods and processes • Energy saving • Space saving, no machine head room • Value for the money invested • Reliable and safe to use • Self supporting steel lift shaft • Fast and easy installation • Very less maintenance cost after purchase • Very minimal modification in your existing building DIFFERENT LOAD CAPACITIES OF MATERIAL LIFTS • 200 Kg • 500 Kg • 1000 Kg • 1500 Kg • 2000 Kg DIFFERENT CAR SIZES OF MATERIALS LIFTS •1500 mm x 1500 mm • 1500 mm x 2000 mm • 1500 mm x 2500 mm • 2000 mm x 2500 mm Maximum lift height we can manufacture is 10 m. SAFETY FEATURES IN OUR GOODS LIFT: In our goods lift, we always provide required safety features so that nobody gets injured and any damage to the materials it carries. We have following inbuilt safety features: •The electrical control voltage for the limit switches and safety lock switches is 24 VDC • We provide safety electrical switches for the gates. This ensures the lift does not lift unless the gates are closed. • MPCB for the electrical motor • Option of Imperforated doors • Prop-up for maintenance activity APLICATION OF MATERIALS LIFTS •Distribution and logistics companies • Manufacturing companies • Office buildings • Car show rooms • Hotels • Shopping complexes
View Details
HYDRAULIC GOODS LIFT
CONSTRUCTION OF A HYDRAULIC SCISSORS LIFT The various members of a hydraulic scissors lift are the loading platform, hand safety rails, lips, scissors links, base frame, hydraulic cylinders, hydraulic power pack, safety prop-ups, and the electrical control panel. The loading platform is an important member of a scissors lift, it is a platform on which the load sits, load transferred from a truck or a container. It generally has steel chequered plates with load carrying structure beneath it. This should be designed strong enough to withstand dynamic loads arising out by forklifts, trolleys and while material transfer. The hand rails are important safety structure which safeguards the user from free fall in the lifted condition of scissors lift. The lips are bridge structure between a hydraulic scissors lift and trucks. They are foldable type manually or by hydraulic system and sit on the bed of truck or container for easy transfer of trolley or forklifts. The scissors links are another crucial load carrying members. They need to be designed to withstand bending and torsion loads, arising during lifting and lowering. The interconnection hinge points of links carry maximum load and they need self lubricated journal bearings to ensure frictionless and noiseless operation for many years of usage. The base frame is bottom most member. Carry the self weight of scissors lift, payload and reaction loads of hydraulic cylinders. This is intermediate member between scissors lift and ground. The hydraulic cylinders are real muscle in the scissors lift. The important factors to be considered during design stage are less working pressure, sufficient diameter of piston rod to withstand bucking load it encounters during lifting operation. Insufficient diameter of piston may lead to bucking failure on a long run. The hydraulic cylinders could be single or double acting depending upon the requirement and speed requirement of end user. The end mounting should preferably have spherical bearings to accommodate various misalignments during the construction. The hydraulic power pack of scissors lift may have lift lowering block in the hydraulic circuit for its compact size, energy efficient and easy to attend during service and during malfunctioning. It should have manual override control as an alternative to lower the scissors lift during electrical service interruption. Normally, a 24 volt DC supply voltage is preferred for solenoid coil due its less chattering noise and long life even though it involves additional cost for the manufacturer. The electrical control panel of hydraulic scissors lift should have motor protection elements, SMPS for have reduced voltage for solenoid coil and control circuit voltage for limit switches. The reduced voltage of 24VDC saves the life of end user in case of any short circuit situation happens. DIFFERENT APPLICATIONS OF SCISSORS LIFT EQUIPMENT INDUSTRIAL: Docking, loading and unloading materials, trolleys in a trucks or containers Lifting in process materials inside the factory, for example, dies in a press, storing materials in racks Floor to floor movement of materials, trolleys and unit loads CAR SHOW ROOMS: Shifting of cars to different floors HOW TO MAINTAIN A SCISSORS LIFT WHAT IS SCISSORS LIFT WHY SCISSORS LIFTS PURPOSE OF SCISSORS LIFT HOW TO MAINTAIN A SCISSORS LIFT Every equipment needs a proper maintenance for its trouble free working and to get long life. Scissors lifts need constant monitoring of any hydraulic oil leakage. Oil leakage can occur in hydraulic cylinders due its failure of seals, in valves due to improper tightening of fittings, loosening of fittings over time. Hydraulic oil to be replaced as per the manufacturers’ recommendation at a particular interval of time. Top up of hydraulic oil may be needed to compensate loss of quantity of hydraulic oil. Bearings in moving rollers and in the hinge joints to be checked for its free movement and need to be replaced after its service life. Structural failures like bending of various load carrying members and weld crack to be observed during preventive maintenance schedule. SPECIFICATION OF A HYDRAULIC SCISSORS LIFT A hydraulic scissors lift requires following technical parameters to work out an appropriate for a specific application: Load capacity in Kg Lifting platform size, length and width in mm Minimum height when in closed condition ( pit height in case of pit mounted type) in mm Maximum lift height in mm Hydraulic stroke ( difference between maximum and minimum height) in mm Application details Type of scissors lift, pit mounted or floor mounted, with or without conveyor rollers Safety hand rails, on how many sides of lift platform Lip, on how many sides of lift platform PRECAUTIONS TO BE OBSERVED DURING SERVICING Always put prop-ups before a technician enter below the scissors lift as it prevents downward movement and saves the life of a technician. It should never be compromised as the moving pl
View Details
HYDRAULIC SCISSOR LIFT

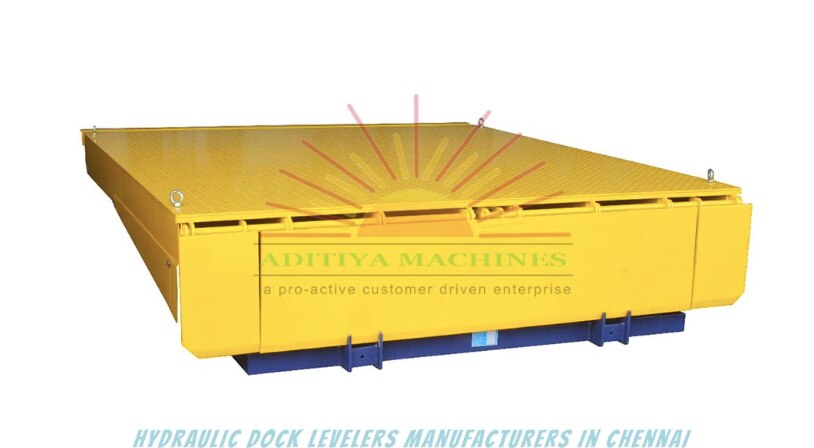

HYDRAULIC DOCK LEVELLER This is a hydraulic height-adjustable platform between the factory or warehouse floor to truck/container bed height. SPECIFICATION • Load Capacity - 9000 Kg Point Load (16000 Kg Uniformly Distributed) • Width - 2000mm • Length - 2500 Mm /3000 Mm / 3500 Mm / 4000 Mm • Pit Height - 550mm • Height Adjustment Of Deck - +350 & -250mm • Lip Dimension - 400 Mm X 2000 Mm • Operation - 3 Phase AC Powerpack With Push-Button Controls • Pit Dimension - 2000 Mm (W) X 2500 / 3000 / 3500 / 4000 Mm X Height 550 Mm SALIENT AND SAFETY FEATURES • Hose Burst Valve For Deck Cylinder • 12VDC Solenoid Voltage, No Electric Shock • Overload Protection For Electric Motor • 2 Nos. Safety Prop-Up For Maintenance • 1000 Mm Hydraulic Deck Lift For A Person To Go Inside Comfortably During Maintenance • Self-Cleaning Lip Hinge System • Radius Lip System
View Details
HYDRAULIC DOCK LEVELERS
